SmartTrack Foot Brace Vertical Adjustment Kit


Price:
Sale price€18,95 EUR

Tax included

Stock:
In stock

Description

Height Adjustment Plates for Pedal Tracks.

With the height adjustment plates, you can lower or raise the position of the rudder pedals, which helps many to more easily access the rudder pedal and thus achieve a more comfortable sitting position and paddling experience.

If you have the SmartTrack Performance pedal track and fixed laminated mounting screws in your kayak, you will need to use height adjustment plates as a mount for the pedal track.

If you want the pedal track closer to the center, spacer blocks (item number ST20-438) can be installed between the hull and the height adjustment plates.

Installation

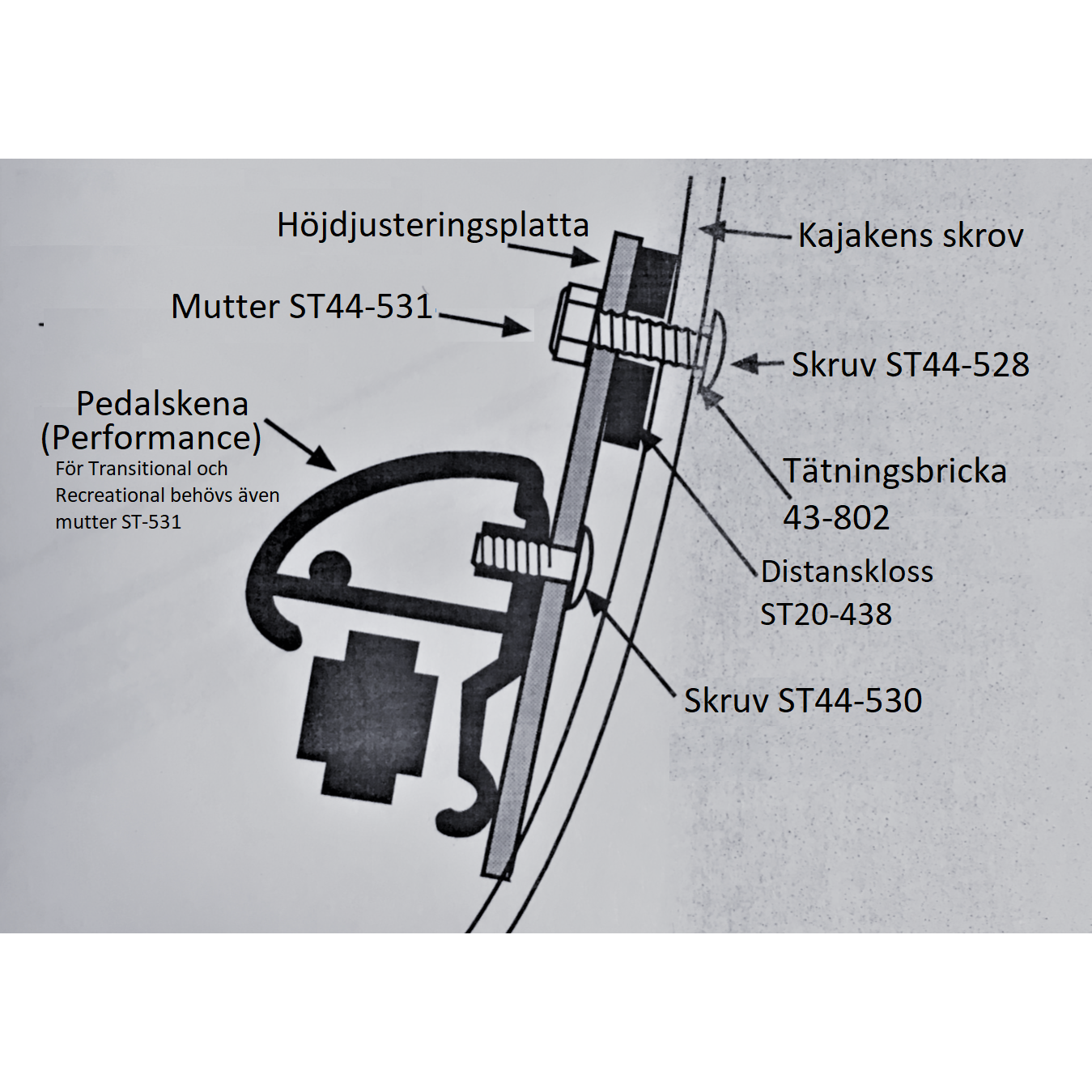

First, mount the pedal track onto the height adjustment plate with two screws (item number ST44-530) and two nuts (item number ST44-531) per track. Then securely attach the plate to the kayak.

There are two ways to install pedal tracks in kayaks:

  1. If the kayak has fixed laminated mounting bolts with corresponding nuts, you can use these. You will also need to use a "SmartTrack Height Adjustment Plate for Pedals" (item number ST948). You then mount the pedal onto the height adjustment plate with a screw (item number ST44-530) and then attach the plate to the fixed mounts in the kayak with the corresponding nuts. If you are building a kayak and plan to laminate your own mounts, we recommend a mounting bolt from Kajaksport (item number KS501117,1).
  2. If there are no fixed laminated mounting bolts in the kayak, you can use through screws through the hull. In this case, mount with 4 through screws (item number ST44-528), 4 nuts (item number ST44-531), and 4 seals (item number ST43-802).

If you want the pedal track closer to the center, spacer blocks (item number ST20-438) can be installed between the hull and the height adjustment plates.

Specifications

  • Length: 445 mm
  • Height: 90 mm
  • Thickness: 3 mm
  • Delivered in pairs
